Aluminium Tank Anodes
Anode
Type
Anode Dimensions
(mm)
Core
Dimensions
(mm)
Nett
Weight
(kg)
Gross
Weight
(kg)
L
B
C
T
LC
Dia
CT-156A
305
65
50
75
765
13
3.3
3.8
CT-155A
610
65
50
75
1070
13
7.1
8.1
CT-154A
765
65
50
75
1225
13
8.7
10
CT-153A
1015
65
50
75
1475
13
11.6
13.1
CT-152A
1270
65
50
75
1730
13
14.5
16.3
CT-151A
1525
65
50
75
1985
13
17.3
19.3
CT-196A
305
85
75
95
765
13
5.8
6.3
CT-195A
600
85
75
95
1060
13
12.2
13.2
CT-194A
750
85
75
95
1210
13
15
16.3
CT-193A
1005
85
75
95
1465
13
20
21.7
CT-192A
1260
85
75
95
1720
13
25.4
27.2
CT-191A
1525
85
75
95
1985
13
30.9
32.9

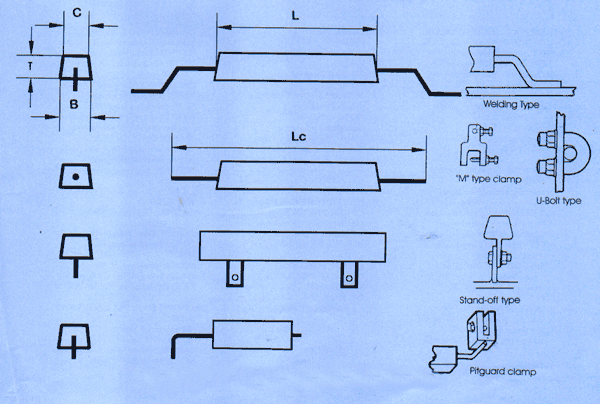

ALUMINIUM TANK ANODE INSTALLATION METHODS

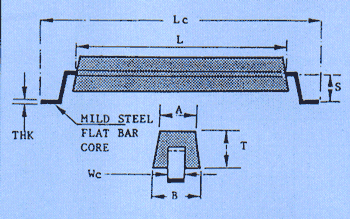

ALUMINIUM JETTY & WHARF ANODES
ANODE
TYPE 		ALLOY WT.
(KG) 		GROSS WT.
(KG) 		L
(mm) 		A
(mm)		 B
(mm) 		T
(mm) 		S
(mm) 		LcxHcxFcxThk.
(mm)
C345DCFB 34.5 40 1250 89 115 103 135 1600x50x8
C400DCFB 40 46 1500 89 115 102 135 2000x50x8
C600DCFB 60 66 1500 126 145 112 135 2000x50x8
C635DCFB 63.5 68 1020 148 174 144 135 1400x50x8
C800DCFB 80 87 1500 126 151 146 135 2000x50x9
C1100DCFB 110 117 1500 148 178 167 155 2000x50x9
C1400DCFB 140 154 1500 198 225 165 155 2000x75x12
C1600DCFB 160 181 2440 148 182 187 155 3000x75x12
C2000DCFB 200 221 2440 148 182 187 155 3000x75x12
DCFB: DOUBLE CRANK FLAT BAR
CODE: STAND-OFF FLAT BAR
NOTE: NON-STANDARD ANODES OF OTHER WEIGHTS/DIMENSIONS OR SPECIAL CORES ALSO AVAILABLE ON
REQUEST.
