Zinc Tank Anode Anode Type Anode Dimensions(mm) Core Dimensions (mm) Nett Weight (kg) Gross Weight (kg) L B T Lc Dia CT-22 Z 1220 64 57 1676 13 21 22 CT-32 Z 1220 77 70 1676 13 31 32 CT-42 Z 1220 83 79 1676 13 41 42 CT-54 Z 1220 94 91 1676 19 51 54

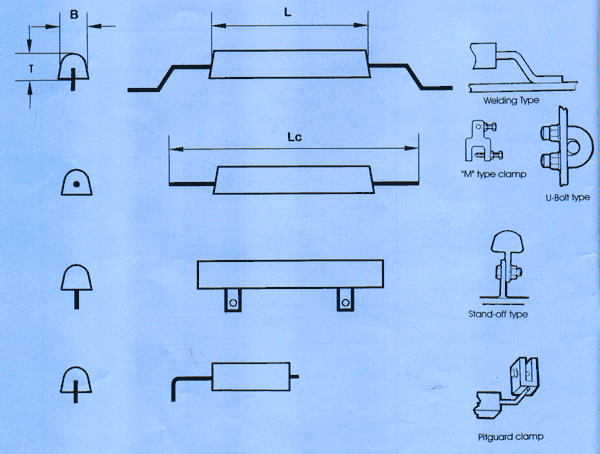

ZINC TANK ANODE INSTALLATION METHODS
